1892 Heir Island Lobster Boat
3D laser scan of "Hanorah" a Heir Island, West Cork, lobster boat, originally built in 1892 .

Deliverables included:
  • Raw Scan Data in Point Cloud txt format
  • Deviation Analysis showing tolerences
  • 3D Polygon Mesh model in .OBJ format
  • 2D Lines Plan Drawing
  • 2D Construction Drawing
  • 3D PDF model
Scanning completed using Faro Focus 3D scanner

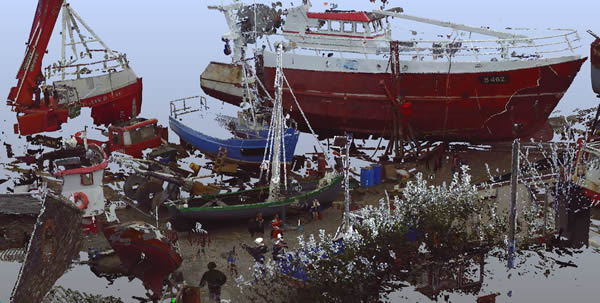

Scan

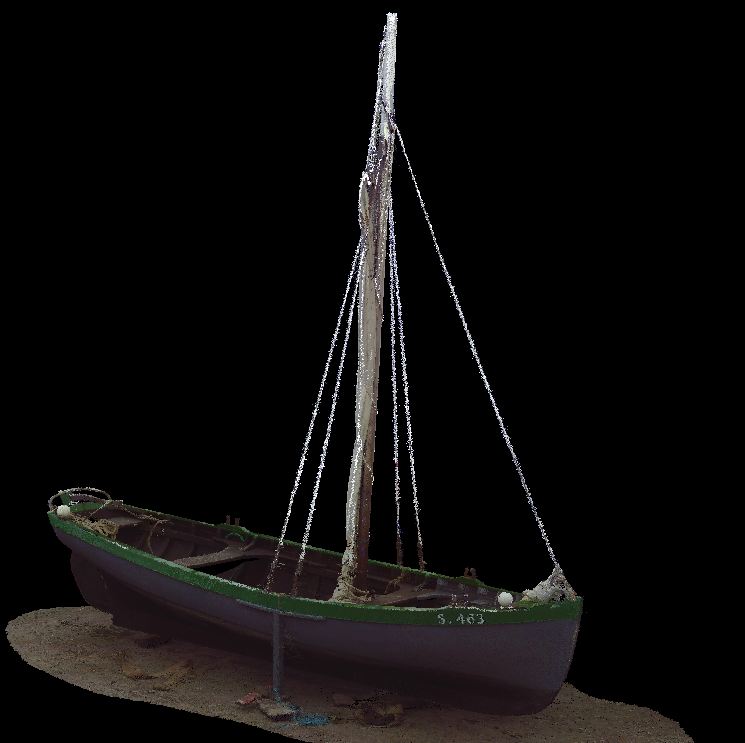

3D laser scan of boatyard		 Cleaned Scan
Cleaned 3D point cloud

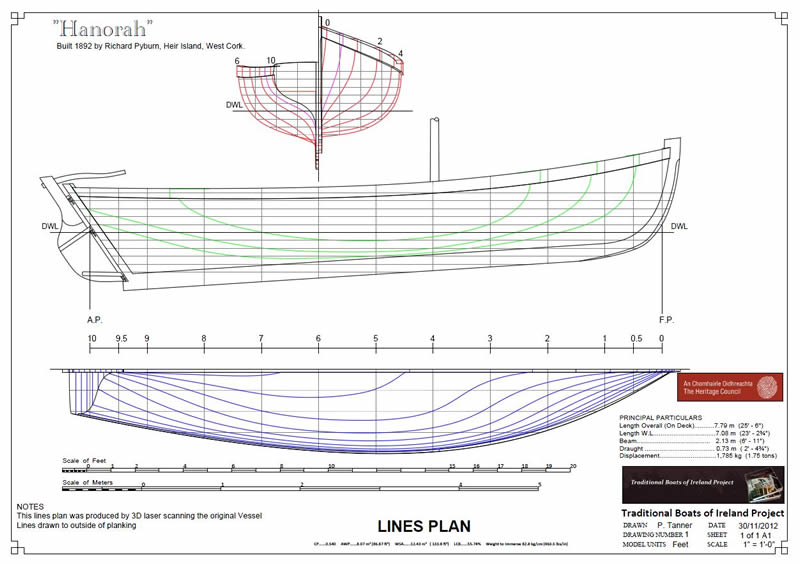

Lines Plan

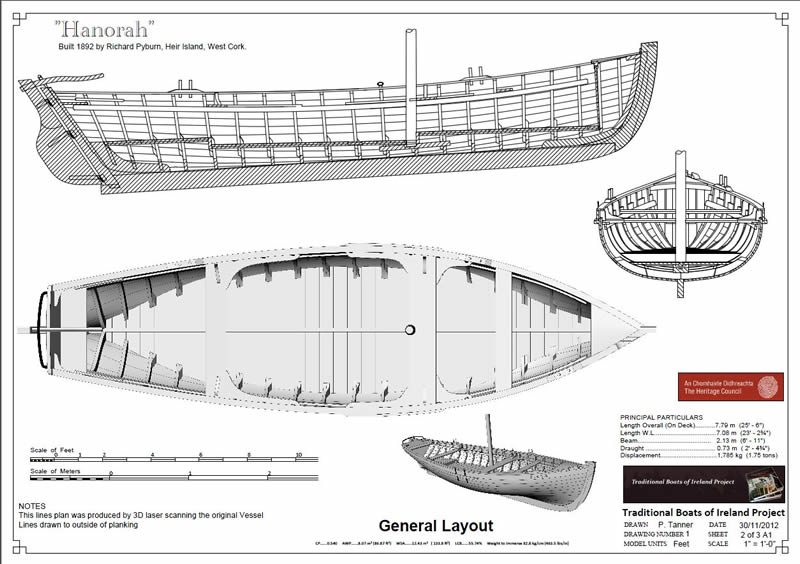

2D Lines Plan Drawing 		Construction Drawing
2D Construction Plan Drawing

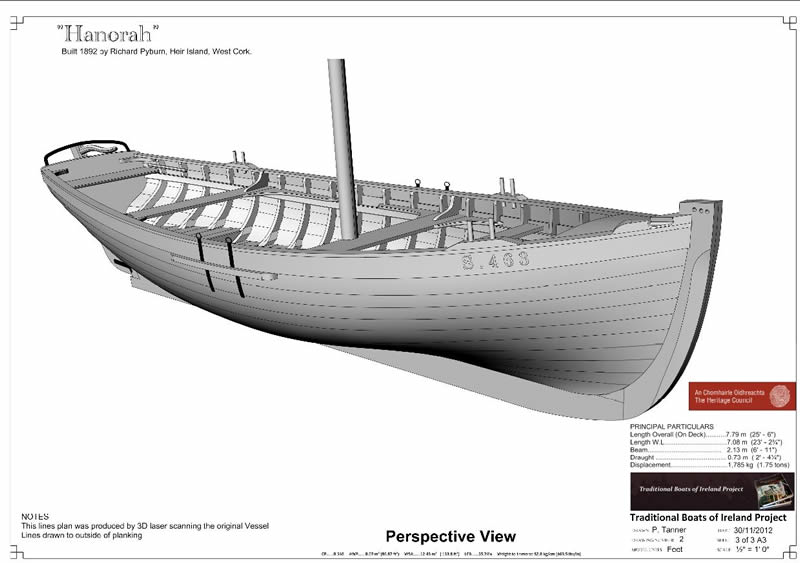

3D Model
3D Model		 Photo
Hanorah Photo
